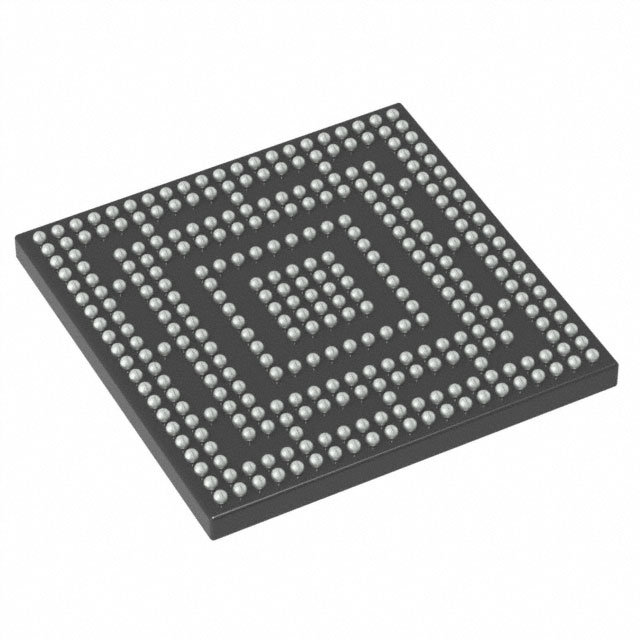

SmartFusion®2 SoC FPGA with 60K Logic Modules ARM Cortex-M3 Processor in 325-FCBGA Package
Category:
Integrated Circuits ICs
Specifications
Logic Modules:
60K
Clock Speed:
166MHz
Package Size:
325-FCBGA (11x11)
Operating Temperature:
-40°C ~ 100°C (TJ)
Number Of I/O:
200
RAM Size:
64KB
Flash Size:
256KB
Core Processor:
ARM® Cortex®-M3
Peripherals:
DDR, PCIe, SERDES
Connectivity:
CANbus, Ethernet, I²C, SPI, UART/USART, USB
Architecture:
MCU, FPGA
Package Type:
325-TFBGA, FCBGA
Series:
SmartFusion®2
Supplier Package:
325-FCBGA (11x11)
Product Status:
Active
Highlight:
60K Logic Modules SmartFusion®2 SoC
,ARM Cortex-M3 FPGA SoC
,325-FCBGA System On Chip
Introduction
M2S060-1FCSG325I
SmartFusion®2 FPGA - ARM® Cortex®-M3 SoC
M2S060 60K Logic Modules, 166MHz, 325-FCBGA (11x11)
M2S060 60K Logic Modules, 166MHz, 325-FCBGA (11x11)
Product Overview
The Microchip Technology SmartFusion®2 is a high-performance System-on-Chip (SoC) integrating an ARM® Cortex®-M3 processor with a powerful FPGA fabric. This advanced device offers unparalleled flexibility and efficiency for complex embedded applications.
Engineered for demanding industrial, communications, and defense markets, the SmartFusion®2 family provides a complete solution with integrated peripherals, robust security features, and low power consumption, enabling rapid development and deployment of sophisticated systems.
Key Benefits
- Integrated ARM® Cortex®-M3 processor and FPGA fabric for maximum flexibility
- High-performance 166MHz clock speed for demanding computations
- 60K Logic Modules provide ample resources for complex designs
- Rich peripheral set including DDR, PCIe, and SERDES for extensive connectivity
- Compact 325-FCBGA (11x11) package for space-constrained applications
Target Industries & Applications
- Industrial Automation
- Medical Devices
- Aerospace & Defense
- Communications Infrastructure
- Motor Control
- Embedded Vision
Product Attributes
Brand
Microchip Technology
Origin
USA
Material
Silicon
Color
N/A
Packaging/Delivery
LCL, AIR, FCL, Express
FOB Price
0
MOQ
N/A
FOB Unit
piece
Technical Specifications
| Category | Integrated Circuits (ICs) - Embedded - System On Chip (SoC) |
|---|---|
| Base Product Number | M2S060 |
| Product Status | Active |
| Peripherals | DDR, PCIe, SERDES |
| Series | SmartFusion®2 |
| Package | Tray |
| Manufacturer | Microchip Technology |
| Supplier Device Package | 325-FCBGA (11x11) |
| Connectivity | CANbus, Ethernet, I²C, SPI, UART/USART, USB |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Architecture | MCU, FPGA |
| Package / Case | 325-TFBGA, FCBGA |
| Number Of I/O | 200 |
| RAM Size | 64KB |
| Speed | 166MHz |
| Core Processor | ARM® Cortex®-M3 |
| Flash Size | 256KB |
