Szczegóły Produktu:
|

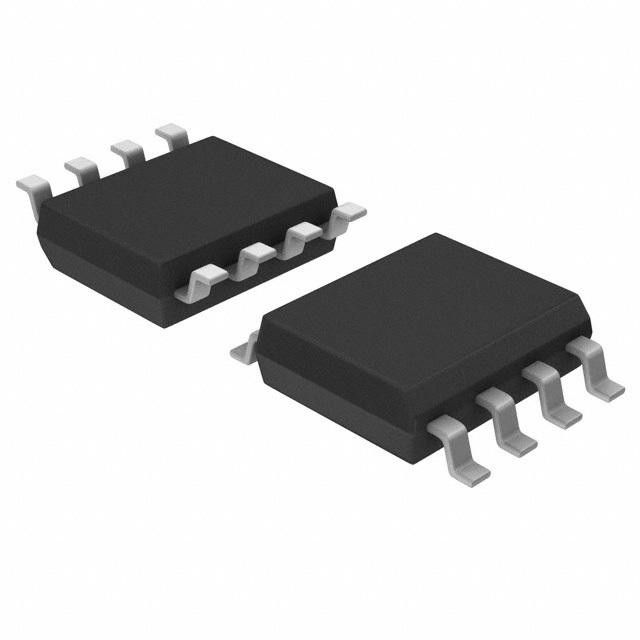

| Numer części: | SI8220BB-A-IS | Producent: | laboratoria krzemu |
|---|---|---|---|
| Opis: | STEROWNIK BRAMY DGTL ISO 2.5KV 8SOIC | Kategoria: | Izolatory - sterowniki bramek |
| Rodzina: | Izolatory - sterowniki bramek | Seria: | Motoryzacja, AEC-Q100 |
| Part Status | Obsolete |
|---|---|
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 30kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 40ns |
| Pulse Width Distortion (Max) | - |
| Rise / Fall Time (Typ) | 20ns, 20ns (Max) |
| Current - Output High, Low | 1.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 2.5V (Max) |
| Current - DC Forward (If) (Max) | 30mA |
| Voltage - Supply | 9.4 V ~ 24 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Approvals | CSA, UR, VDE |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
