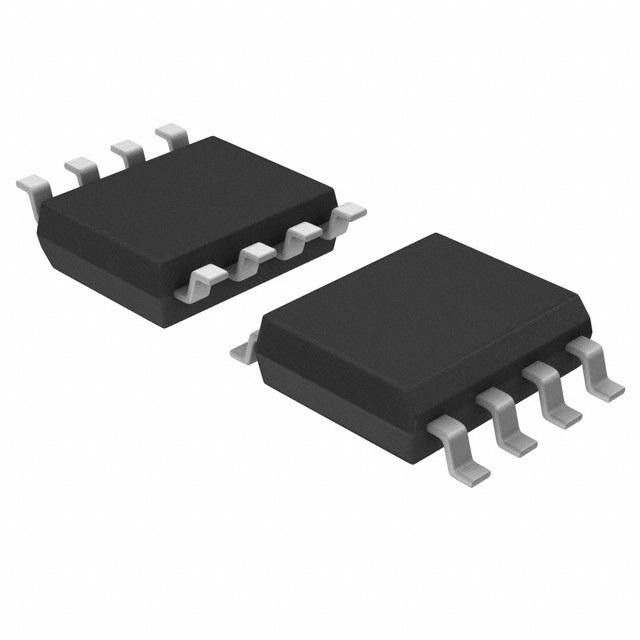

제품 상세 정보:
|
| 부품번호: | ISO7420ED | 제조사: | 텍사스 인스트루먼츠 사 |
|---|---|---|---|
| 기술: | DGTL ISO 2.5KV 일반정보 PURP 8SOIC | 범주: | 디지털 아이솔레이터 |
| 가족: | 디지털 아이솔레이터 |
| Part Status | Active |
|---|---|
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 50Mbps |
| Propagation Delay tpLH / tpHL (Max) | 11ns, 11ns |
| Pulse Width Distortion (Max) | 3ns |
| Rise / Fall Time (Typ) | 1.8ns, 1.7ns |
| Voltage - Supply | 3 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
